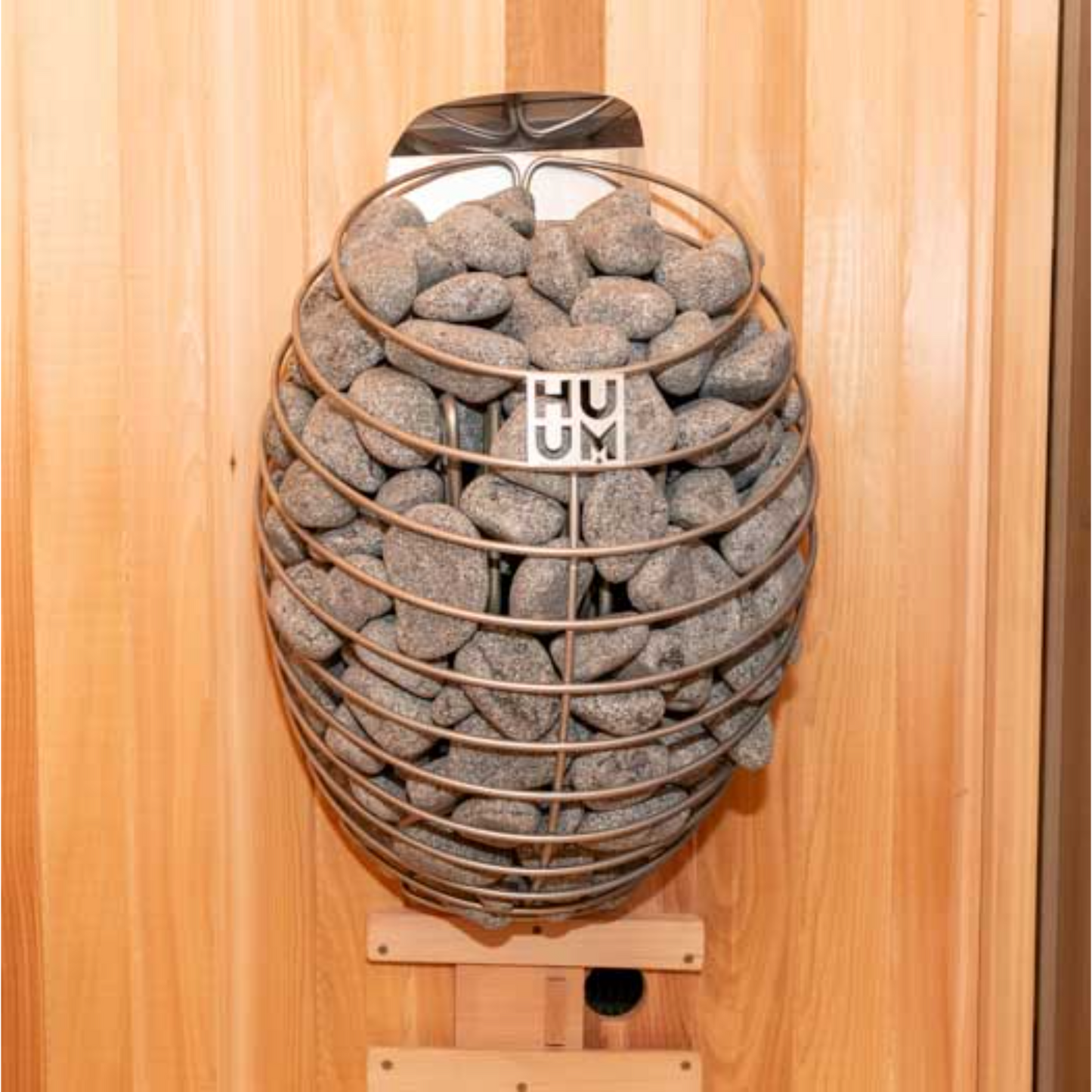

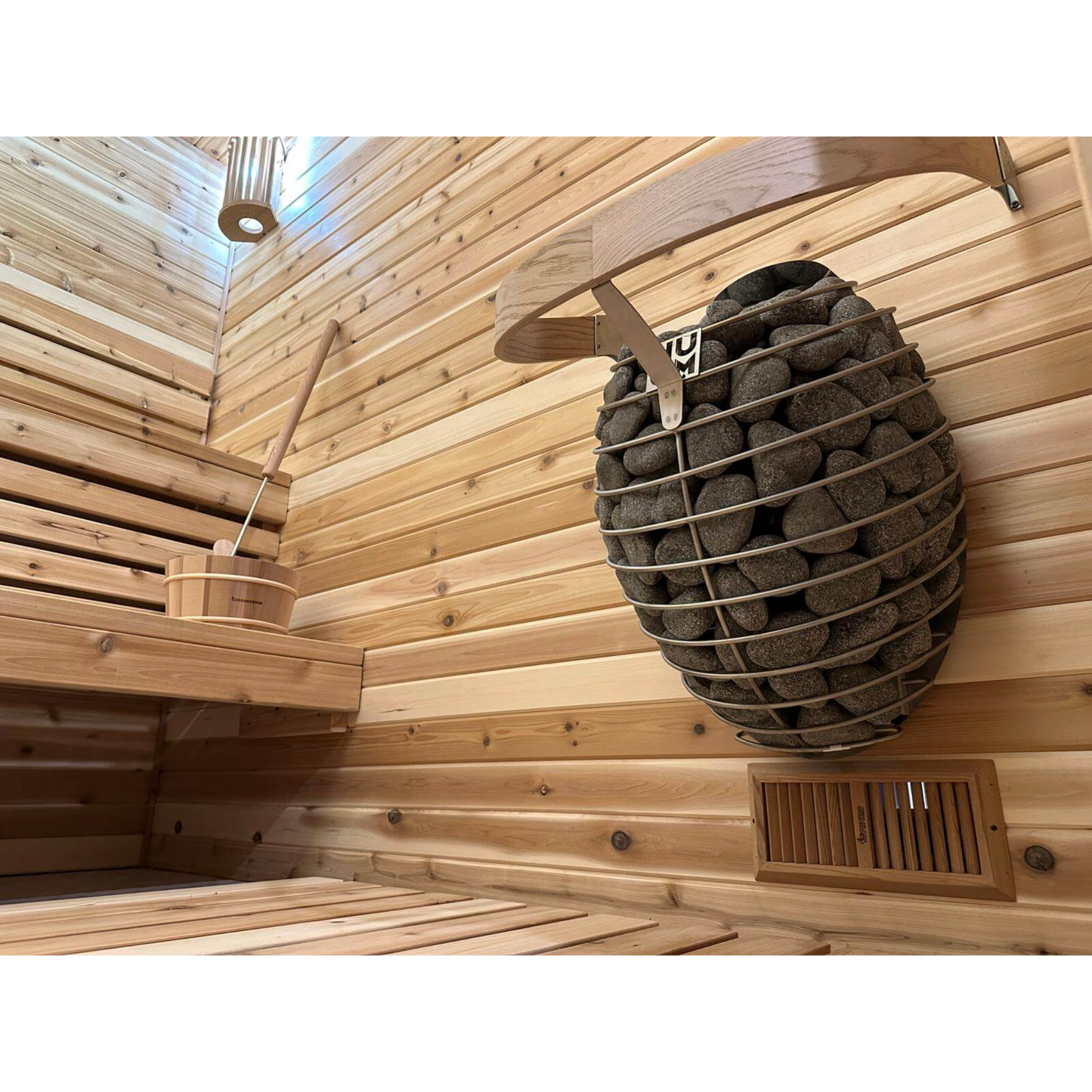

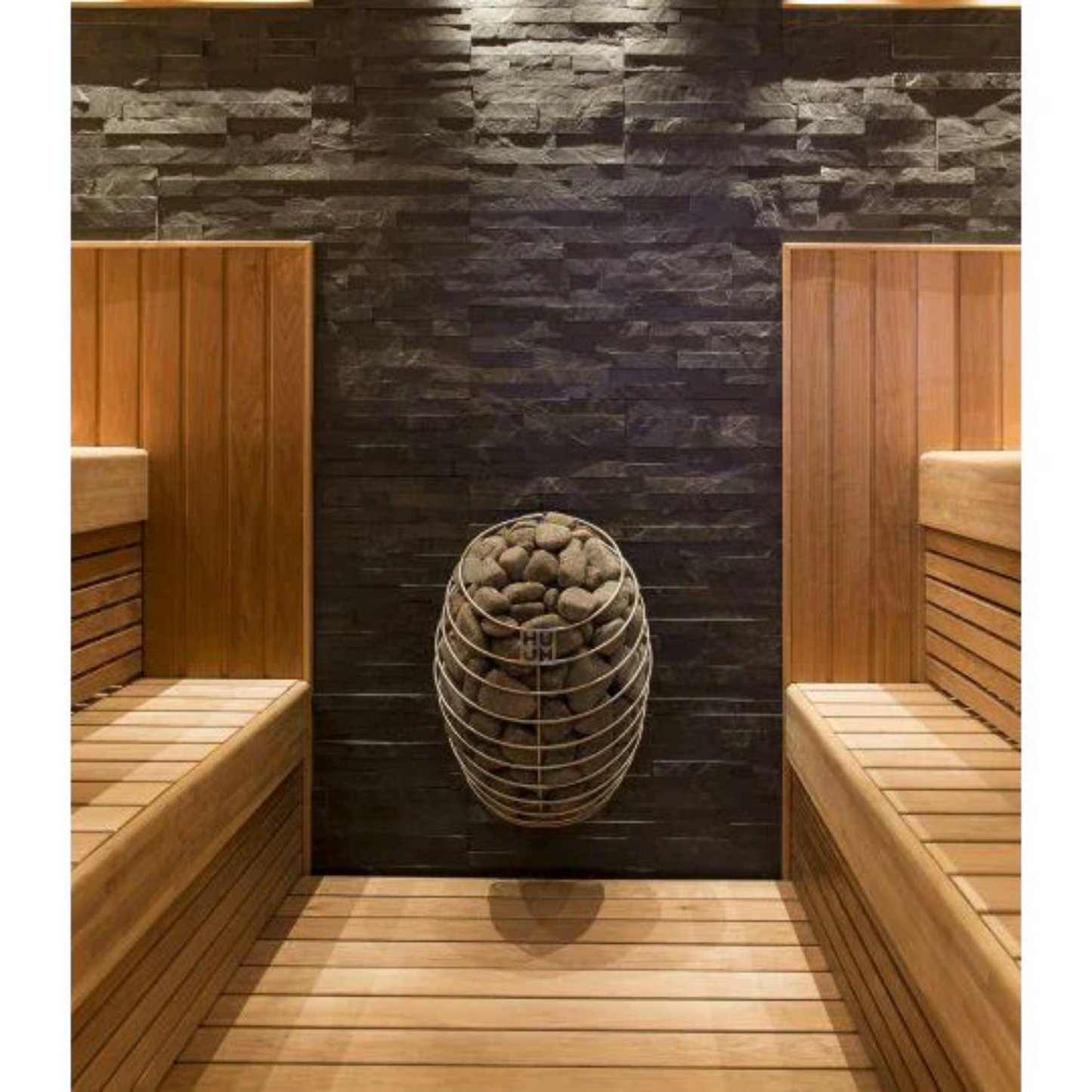

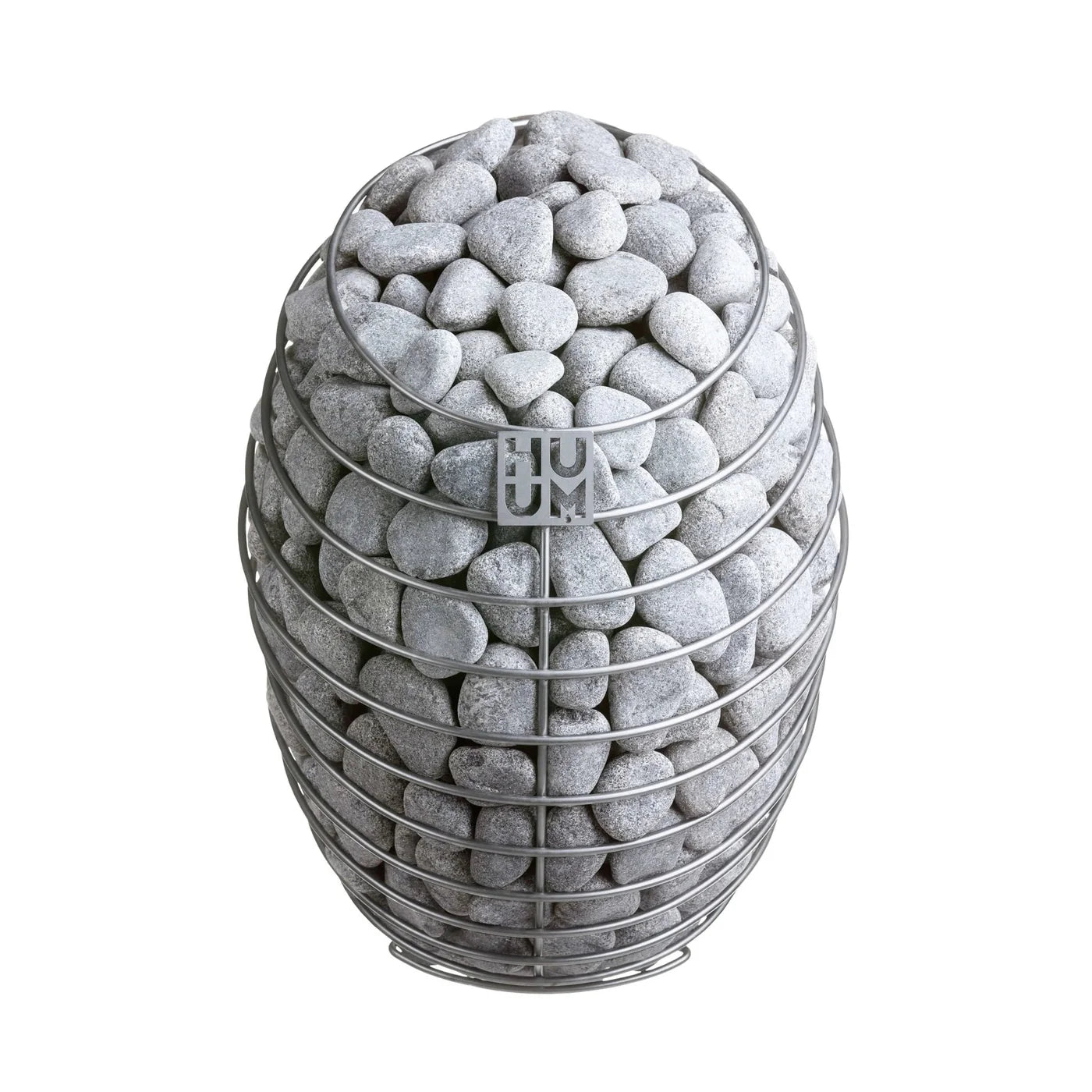

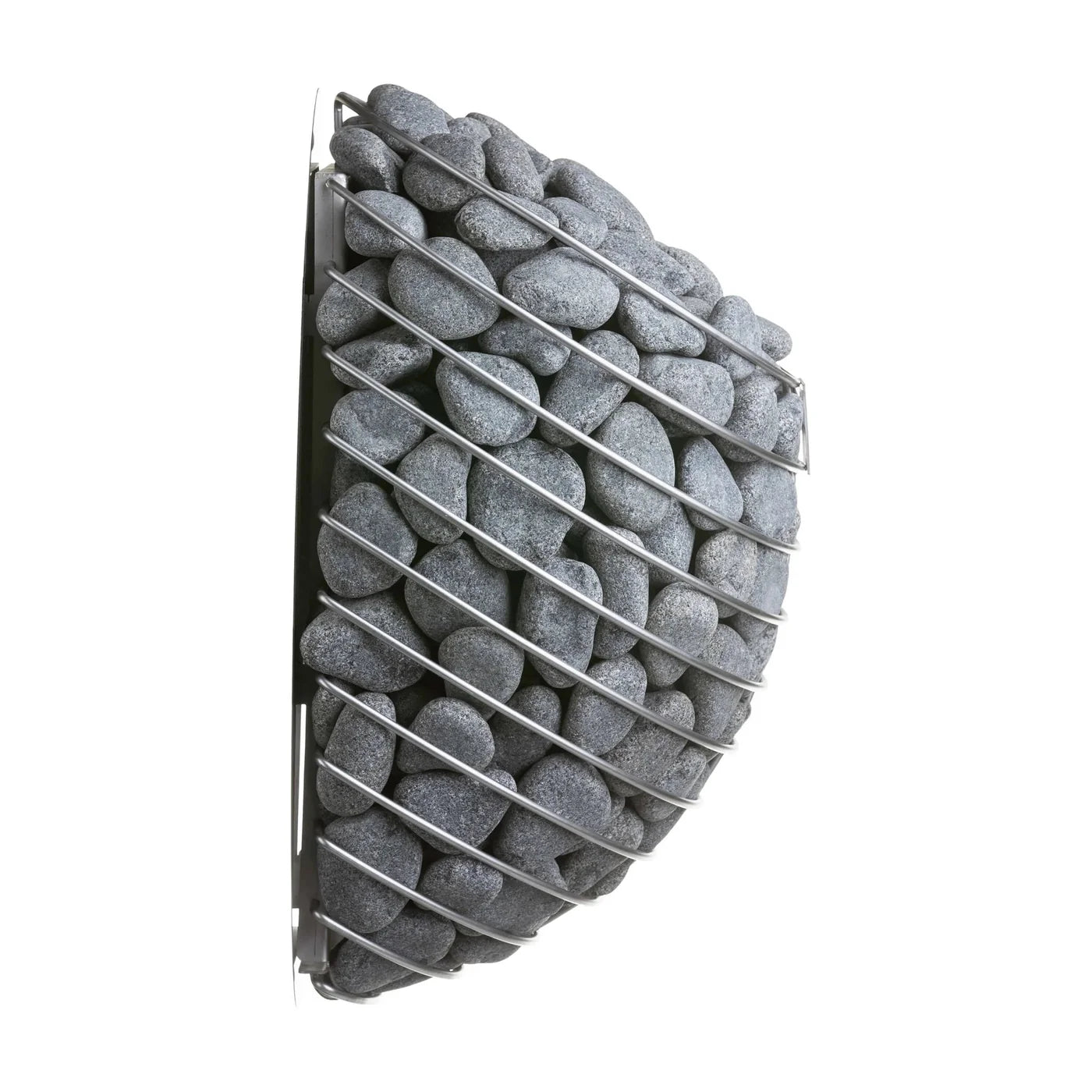

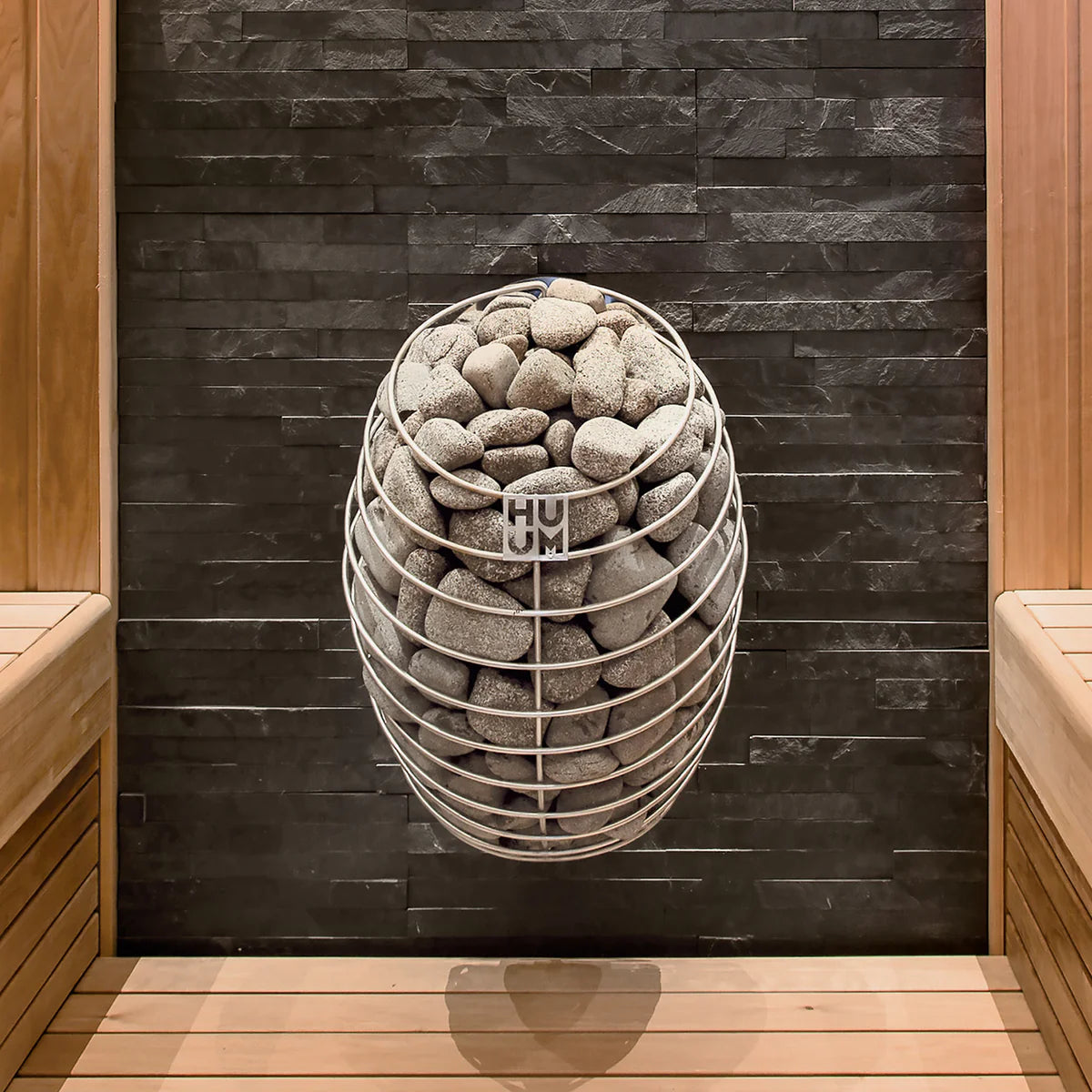

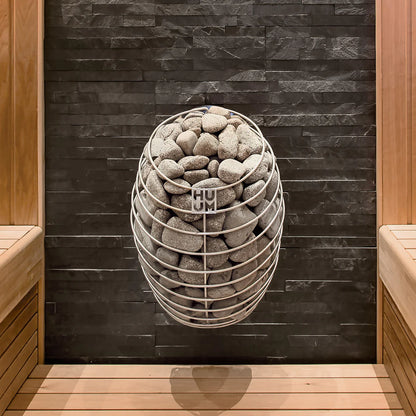

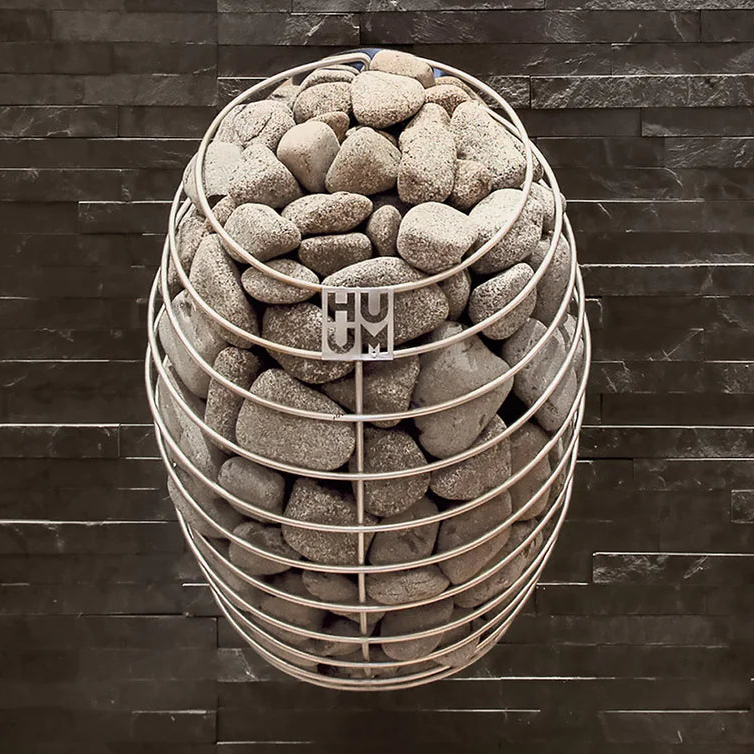

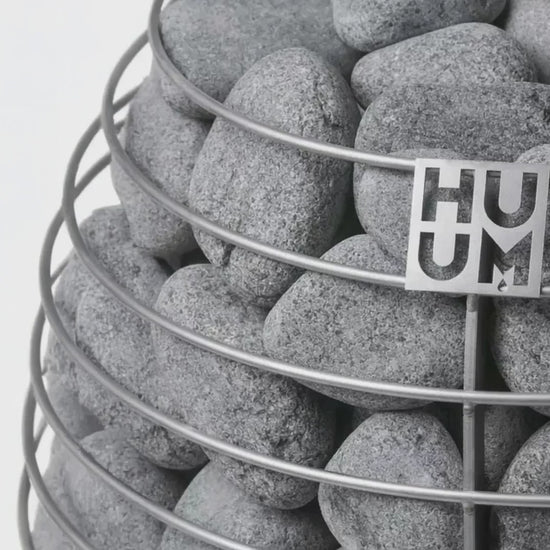

HUUM DROP Electric Sauna Heater

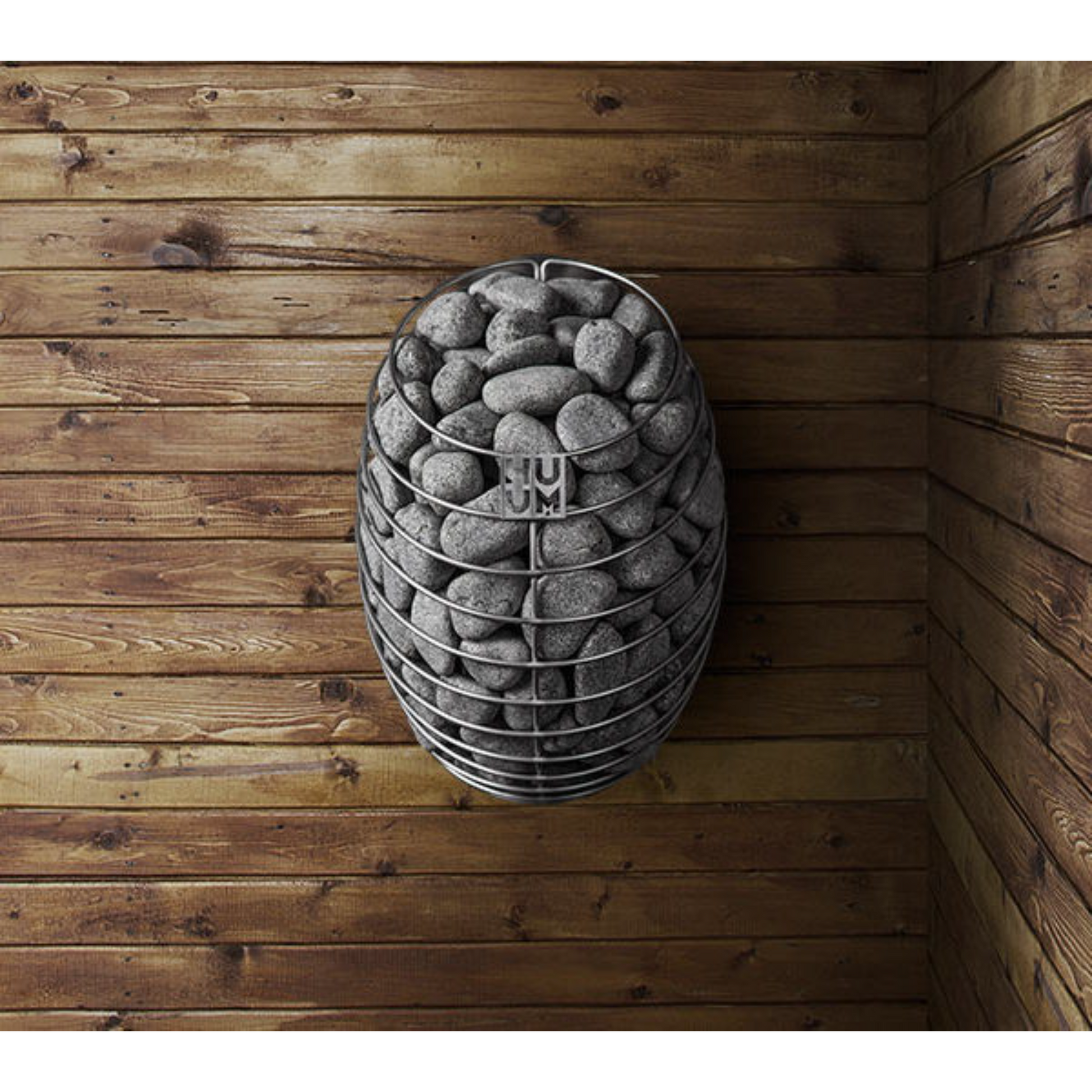

DROP electric sauna heater is inspired by the purest element of nature – a drop of water. The sleek and rounded design adds a touch of elegance to any sauna interior. In 2015 the DROP was awarded with prestigious Red Dot design award. In addition to its aesthetic appeal, the DROP heater boasts several outstanding features. This wall-mounted heater, despite its compact size, can accommodate up to 55 kg of stones, which is more than most wood-burning heaters. It provides a gentle and long-lasting steam and comes with durable stainless steel details. With its impressive features and superior appearance, the DROP sauna heater is a must-have for any sauna enthusiast.

Unique design
Mild and long-lasting steam

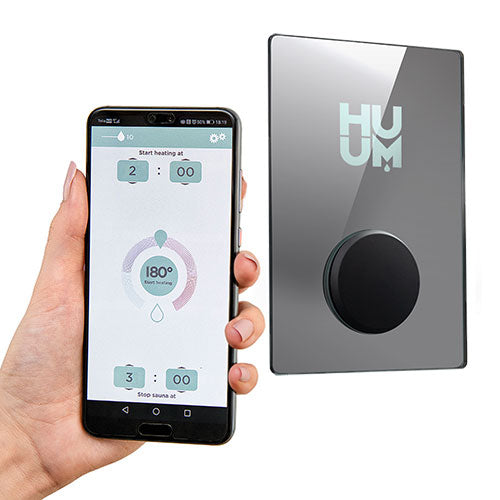

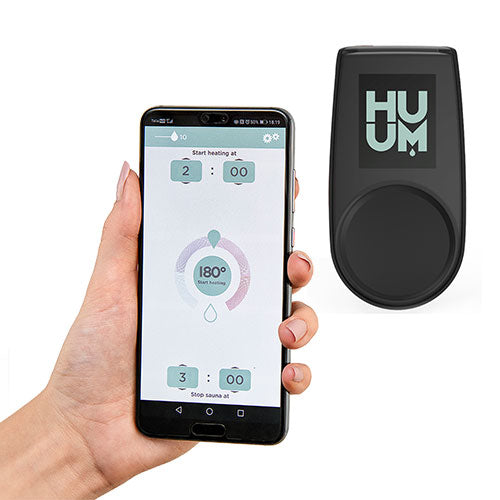

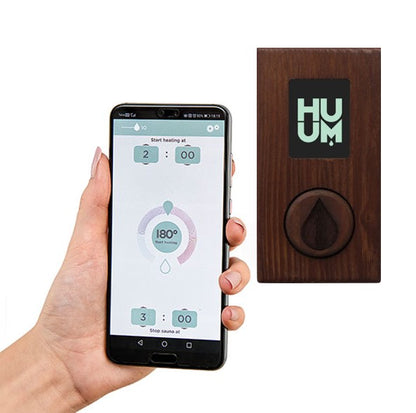

Control with mobile app
Warranty 5 years

Required control and sauna stones (4 boxes) sold separately.

Includes

• HUUM Drop Sauna heater (240V/1PH)
• Wall-mount bracket
• Installation and operation manual
• Limited 5-year warranty

Features

• Unique water drop design
• 240V/1PH operation
• For sauna rooms from 177 to 353 cu. ft.

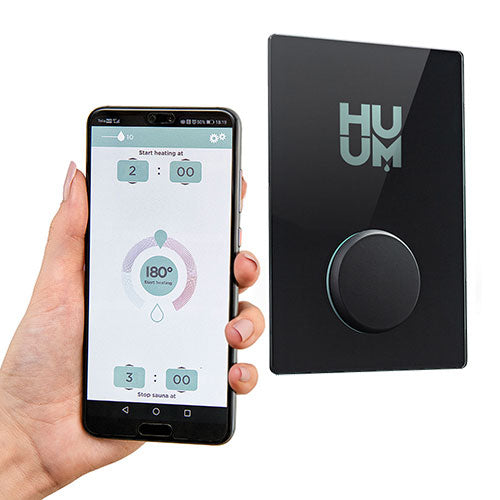

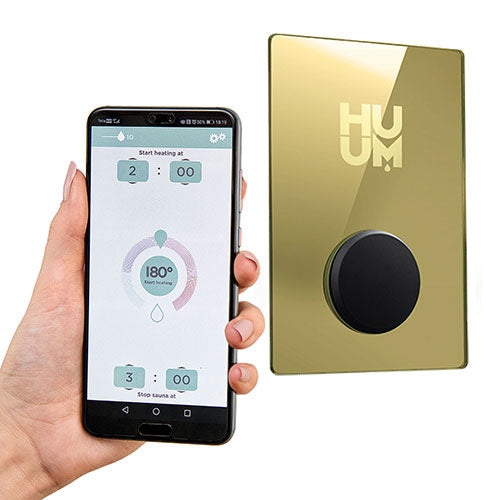

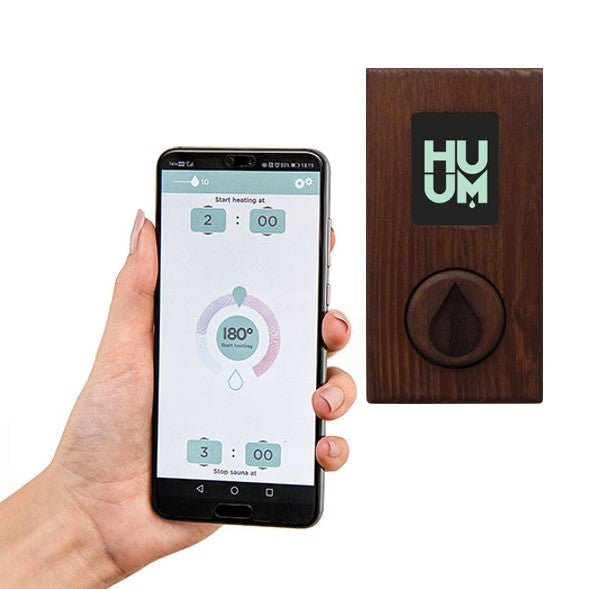

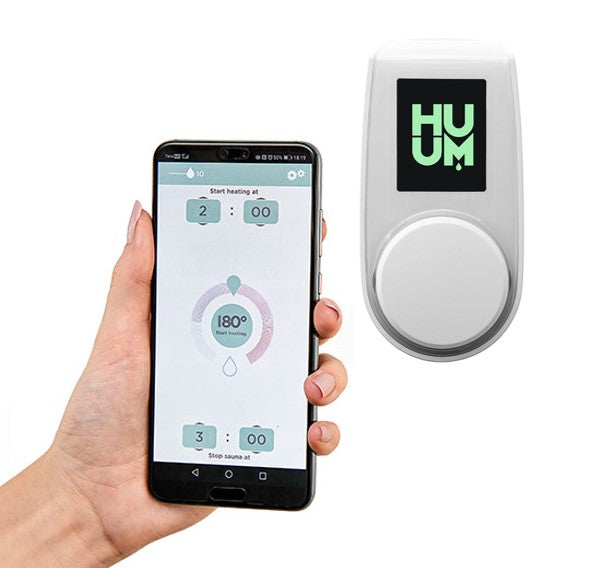

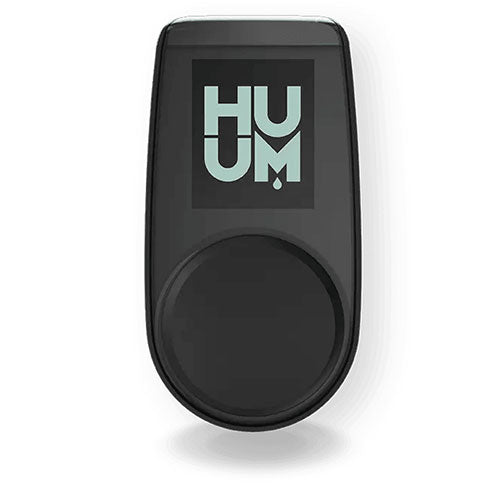

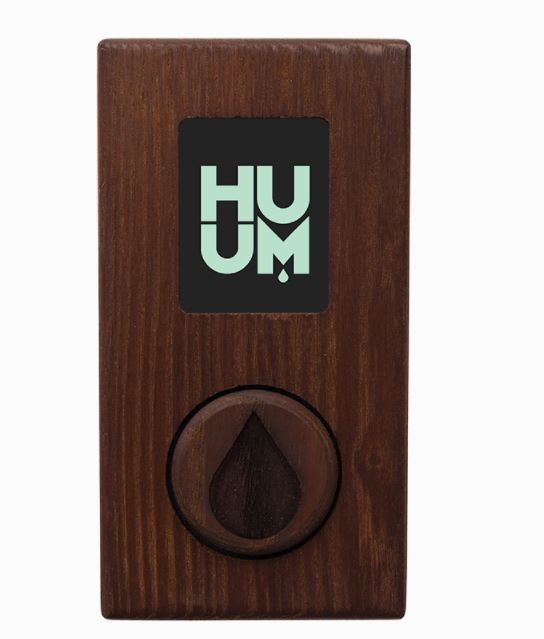

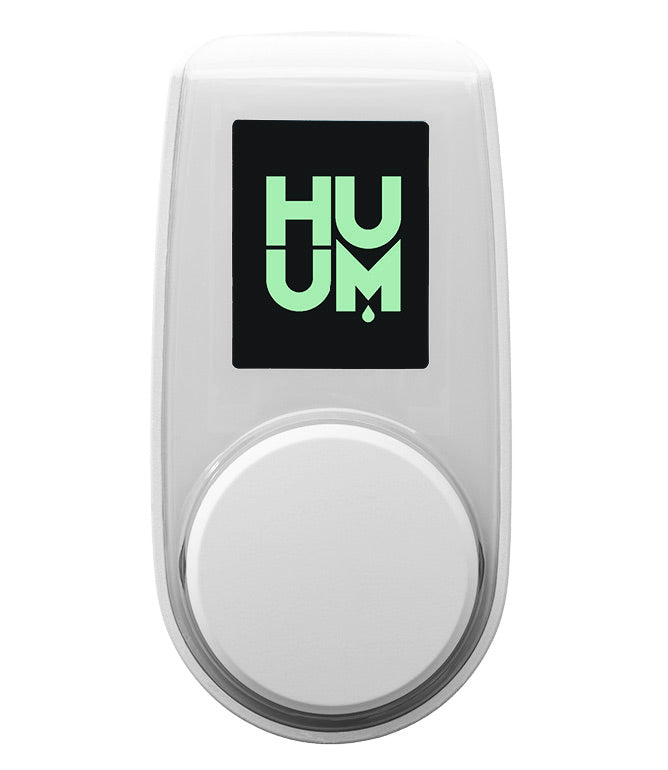

• Works with UKU controls (sold separately)
• 122 pound stone capacity (required 4 boxes sold separately)
• Direct contact between stones and heating elements
• More exposed stones create a longer and milder heat

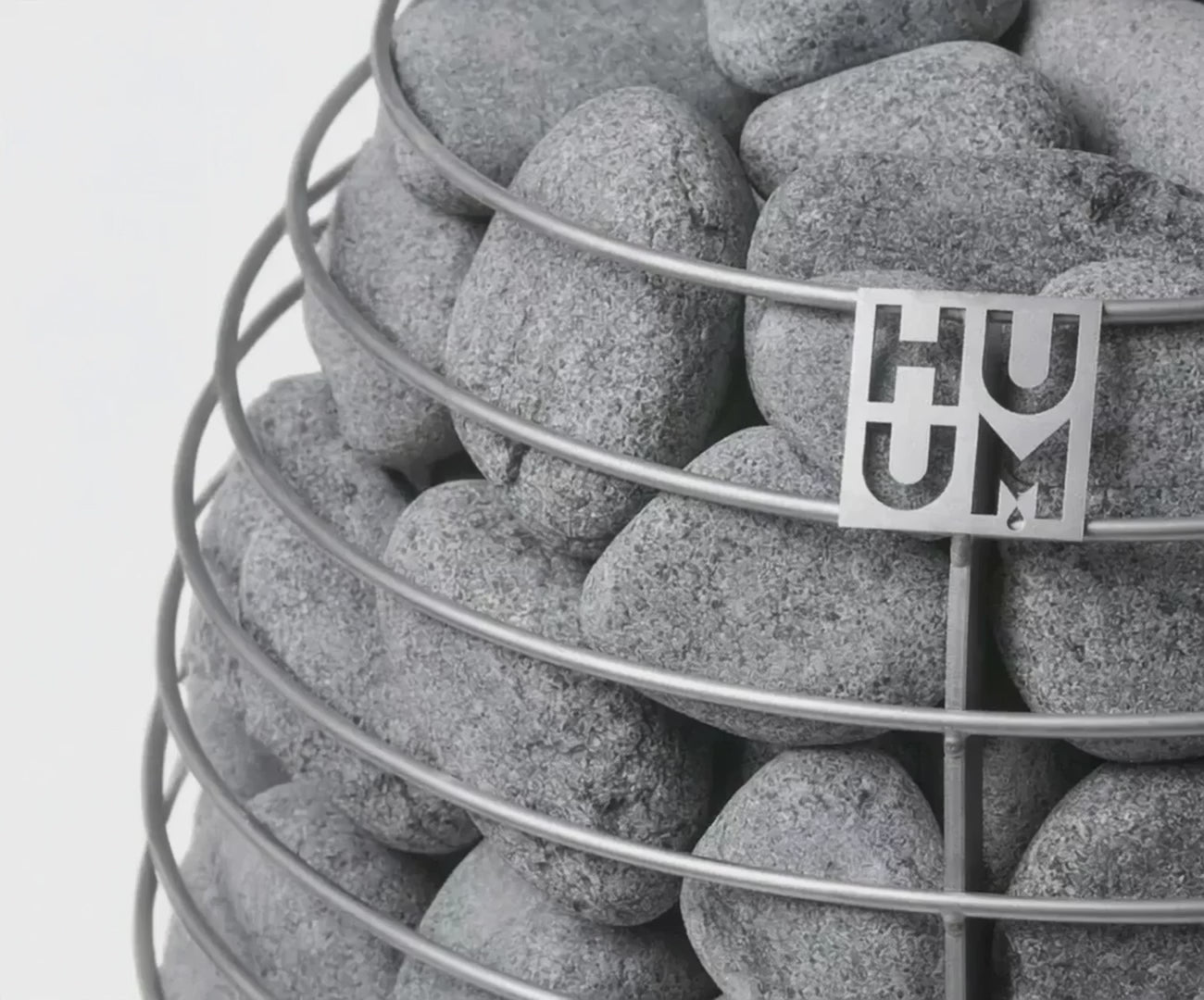

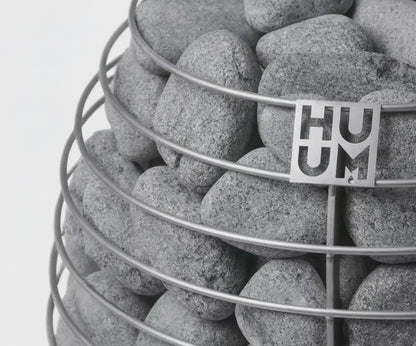

• Stainless steel construction
• Stainless steel, industrial quality heating elements

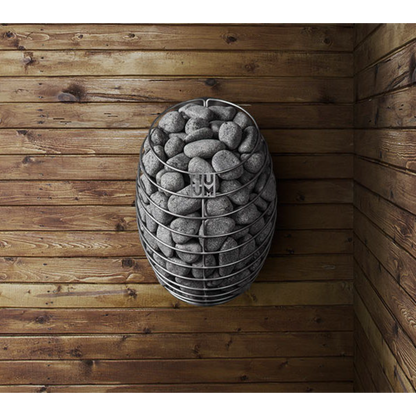

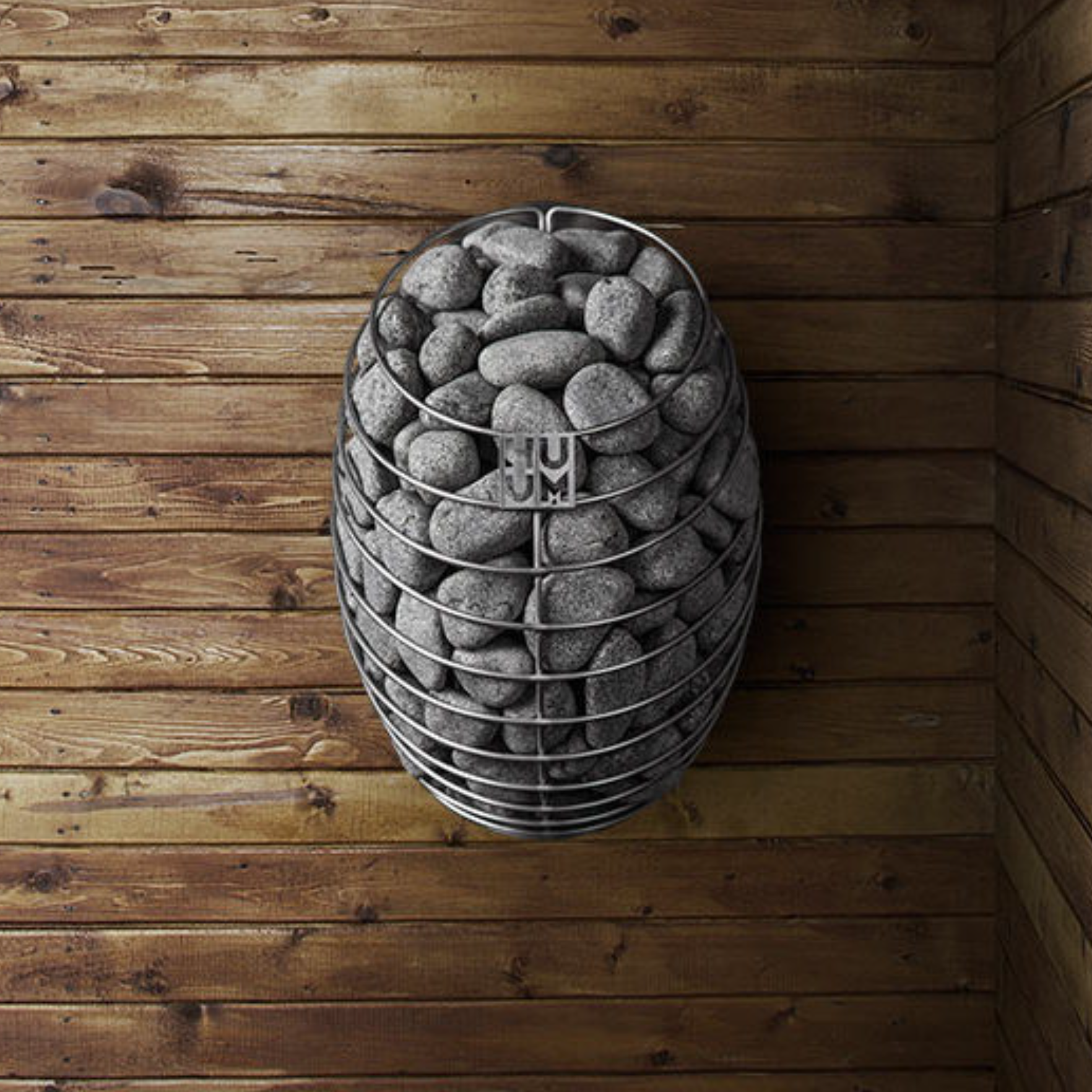

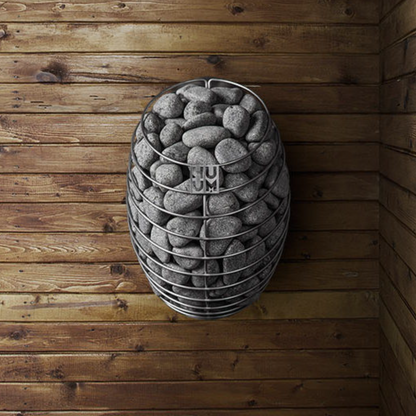

• Wall-mounted design
• Designed, engineered, and made in Estonia
• Dimensions: 15.4"W (390mm) x 13.2"D (335mm) x 23.3"H (590mm)
• SGS Listed
• Limited 5-year residential warranty and limited 1-year commercial warranty (excluding elements)

Specifications

• Installation Type: Wall-Mount
• Voltage/Phase: 240V/1PH
• Dimensions: 15.4"W x 13.2"D x 23.3"H
• Stone capacity: 122 lbs

• Heater Weight: 24 lbs

• Min/Max Temperature: 104 F / 230 F

DROP 4.5 kW:

• Sauna room: 106-247 ft³ (3-7 m³)
• Amps: 18.8 A
• Circuit Breaker Amperage: 30 A
• Wire Size: 10 AWG

DROP 6.0 kW:

• Sauna room: 177-353 ft³ (5-10 m³)
• Amps: 25 A
• Circuit Breaker Amperage: 30 A
• Wire Size: 10 AWG

DROP 7.5 kW:

• Sauna room: 230-441 ft³ (7-12 m³)
• Amps: 31.25 A
• Circuit Breaker Amperage: 40 A
• Wire Size: 8 AWG

DROP 9.0 kW:

• Sauna room: 282-530 ft³ (8-15 m³)
• Amps: 37.5 A
• Circuit Breaker Amperage: 50 A
• Wire Size: 8 AWG

Technical

• Owner's Manual
• Heater Sizing
• Electrical Approval
